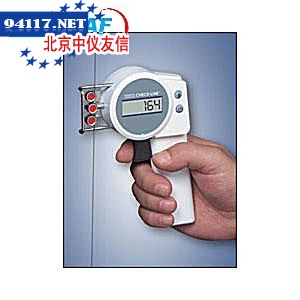

STX - Digital Strap Tension Meter, 2000 Lbs
Select Grams, Newtons or Pounds
Real-Time Max/Min Values
Approx. 9 Hours of Battery Life Per Charge
+/- 4% Accuracy
Includes Calibrations for Poly and PET Strapping
|
Load Range - lb. |
|
100 to 2000 |
|
Accuracy |
|
4 ± %F.S. |
|
Material |
|
Aluminum w/Plastic Cover |
|
Temp. Range |
|
35 - 120 °F |
|
Power |
|
AAA Rechargeable NIMH Battery |
|
Minimum/Maximum |
|
Standard |
|
Analog Output |
|
Optional, 0-5 Vdc or 4-20 mA |
|
RS232 |
|
Optional |
|
Display |
|
4 Digits |
|
Safe Overload |
|
200 % F.S. |
|
Tension Value Display As |
|
lb, kg, N |
|
Note |
|
STXM 2000 Includes Calibration for Poly and PET strapping with thicknesse from 0.020 to 0.055 inches and steeling strapping with thicknesses between 0.017 to 0.044 inches For Dimensions see PDF full specifications |
|
|
