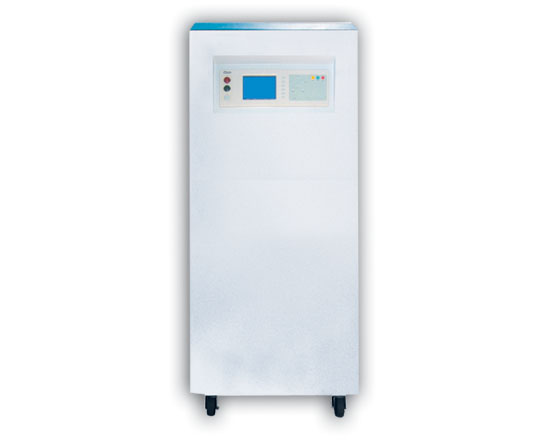

艾诺 安全性能综合测试仪AN9651T
|
接地导通电阻测试参数 |
Ground Bond Test,接地电阻测试 | 测量范围 | 分辨率 | 精度 | |||
| 接地导通电阻测试参数 | 输出电流, AC, A | 2 - 30 | 1 | ±2% of setting + 0.1A | |||
| 接地导通电阻测试参数 | 电阻测量, m Ω(2～ 10A) | 10.0-600.0 | 0.1 | ±3% of reading +3 m Ω | |||
| 接地导通电阻测试参数 | 电阻测量, m Ω(11～ 30A) | 10.0--300.0 | 0.1 | ±3% of reading +3 m Ω | |||
| 接地导通电阻测试参数 | 补偿电阻, m Ω | 0-100 | 1 | ||||
| 接地导通电阻测试参数 | 测试时间, sec. | 1- 999.9 | 0.1 | ±0.1% of setting + 0.05 sec. | |||
| 绝缘电阻测试参数 | Insulation Resistance,绝缘电阻 | 范围 | 分辨率 | 精度 | |||
| 绝缘电阻测试参数 | 输出电压Output Voltage, DC, V | 500V ，1000V | ±2% of setting+5volts | ||||
| 绝缘电阻测试参数 | 电阻测量, MW（500V） | 0.3-99.9 | 0.1 | ±2% of reading+5s | |||
| 绝缘电阻测试参数 | 电阻测量, MW（1000V） | 1.0-99.9 | 0.1 | ±2% of reading+3s | |||
| 绝缘电阻测试参数 | 电阻测量, MW（500，1000V） | 100-300 | 1 | ±2% of reading+3s | |||
| 绝缘电阻测试参数 | 电阻测量, MW（500，1000V） | 300-2000 | 1 | ±5% of reading+3s | |||
| 绝缘电阻测试参数 | 下限设定, MW | 0.0-99.9，100-2000 | 0.1，1 | ||||
| 绝缘电阻测试参数 | 缓升时间 Ramp Up Time, sec. | 0，0.1 – 999.9 | 0.1 | ±0.1% of setting + 0.05 sec. | |||
| 绝缘电阻测试参数 | 测试时间Dwell Time, sec. | 1.0 - 999.9,or ∞ | 0.1 | ±0.1% of setting + 0.05 sec. | |||
| 绝缘电阻测试参数 | 输出波形 | 纹波系数≤4% | |||||
| 耐压 | AC Withst Voltage,交流耐压 | 范围 | 分辨率 | 精度 | |||
| 耐压 | 输出电压Output Voltage, AC, V | 500 – 5000 | 5 | ±3% of setting +5 | |||
| 耐压 | 击穿电流Limit Setting, m A | 0.10 – 99.99 | 0.01 | ±3% of reading +3 | |||
| 耐压 | 上限设定,m A | 0.00– 99.99 | 0.01 | ||||
| 耐压 | 下限设定,m A | 0.00– 99.99 | 0.01 | ||||
| 耐压 | 测试时间Dwell Time, sec. | 0.1 - 999.9 | 0.1 | ±0.1% of setting + 0.05 sec. | |||
| 耐压 | 缓升时间 Ramp Up Time, sec. | 0.1 – 999.9 | 0.1 | ±0.1% of setting + 0.05 sec. | |||
| 耐压 | 输出波形Output Waveform | 波峰因数 | |||||
| 耐压 | 电压输出Output Regulation |
| |||||
| 耐压 | 电压输出Output Regulation | 电压调整率(±3% of output +5) | |||||
| 泄漏测试参数 | Current Measurement泄漏电流 | 测量范围 | 分辨率 | 精度 | |||
| 泄漏测试参数 | 泄漏电流Leakage Current，μA | 50 – 9999 μA | 1 | ±(2% of reading + 5 s) | |||
| 泄漏测试参数 | 上限设定, μA | 0-9999 | 1 | ||||
| 泄漏测试参数 | 测试时间Delay Time, sec. | 1.0 - 999.9 ,or ∞ | 0.1 | ±(0.1% of setting + 0.1 sec.) | |||
| 泄漏测试参数 | 输出电压Output Voltage, AC, V | 1.06或1.11倍输入电压(由隔离变压器输出) | |||||
| 泄漏测试参数 | 频率范围Frequency Range | 20Hz – 5KHz | |||||
| 泄漏测试参数 | 符合标准Compliance Stards | GB4706 | |||||
| 功率测试参数 | Power Test功率测试 | 测量范围 | 分辨率 | 精度 | |||
| 功率测试参数 | 电压Voltage, V ac | 100-280 | 1 | ±(1% of reading +5s) | |||
| 功率测试参数 | 电流Current, A ac | 0.10-1.99 | 0.01 | ±(1% of reading+4s) | |||
| 功率测试参数 | 电流Current, A ac | 2.00-30.00 | 0.01 | ±(0.5% of reading+2s) | |||
| 功率测试参数 | 功率Power, Watts | 20.0—99.9 | 0.1 | ±(1% of reading+3s) | |||
| 功率测试参数 | 功率Power, Watts | 100-499 | 1 | ±(1% of reading+3s) | |||
| 功率测试参数 | 功率Power, Watts | 500～ 2000/4000/6000W | 1 | ±(0.5% of reading+3s) | |||
| 功率测试参数 | 功率因数Power, Factor | 0.00-1.00 | 0.01 | ±(1.5% of reading+2s) | |||
| 功率测试参数 | 测试时间Delay Time, sec. | 1.0 - 999.9 ,or ∞ | 0.1 | ±(0.1% of setting + 0.1 sec.) | |||
| 启动测试参数 | Run Test启动测试 | 测量范围 | 分辨率 | 精度 | |||
| 启动测试参数 | 电压Voltage, V ac | 80-280 | 1 | ±(1% of reading +5s) | |||
| 启动测试参数 | 电流Current, A ac | 0.10-1.99 | 0.01 | ±(1% of reading+4s) | |||
| 启动测试参数 | 电流Current, A ac | 2.00-30.00 | 0.01 | ±(0.5% of reading+2s) | |||
| 启动测试参数 | 测试时间Delay Time, sec. | 0.5 - 999.9 ,or ∞ | 0.1 | ±(0.1% of setting + 0.1 sec.) | |||
| 启动测试参数 | 输出电压Output Voltage, V ac | 0.80或0.85或0.9倍输入电压(由隔离变压器输出) | |||||
安全性能综合测试仪 AN9651T
