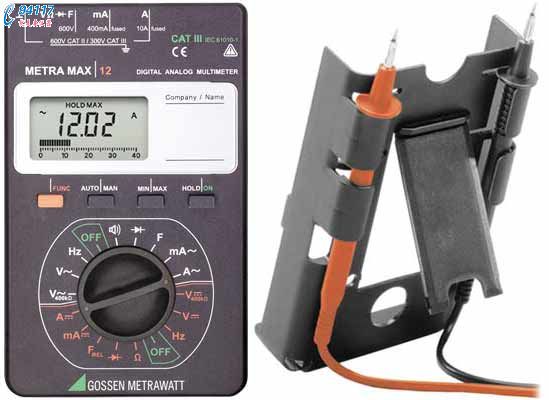

METRAmax12万用表特点
Favorably priced h-held multimeters for professional results. Suitable for use in the fields of general electronics electrical engineering.
± 4000 s with bar graph
Voltage measurement from 400 mV ... 600 V
AC/DC/
AC
Selectable input resistance: 10 MOhm / 400 kOhm
Intrinsic error V
AC/DC: ±0.5% of reading + 2 digits,
V
AC: ±1% of reading + 5 digits
Current measurement: 40, 400 mA
AC/DC/
DC,
10A =/~ (12 A max. 5 min.)
Intrinsic error A
AC/DC: ± 0.8% of reading + 2 digits,
A
AC: ± 1% of reading + 5 digits
Resistance measurement: 400 Ohm ... 40 MOhm
Frequency measurement: 10 Hz ... 400 kHz
Capacitance measurement: 4 nF ... 40 uF
Continuity diode testing, Min, Max HOLD memory
VDE GS approved, case with tilt st take-up reel
Dimensions: 92 x 154 x 25 mm
Weight: approx. 0.2 kg with batteries
Batteries: 2 ea. 1.5 V IEC LR 6 (AA mignon)
