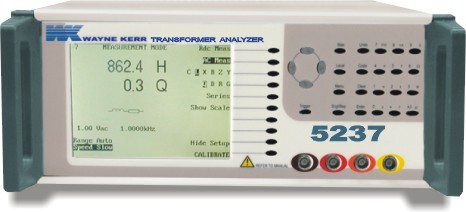

台湾益和 变压器分析仪5235/5236/5237
．0.1%基本精確度
．測試頻率最高可達1MHz
．最高測試速度可達每秒30個項目
．提供治具短路 / 開路校正功能
．提供完整的測試功能, 一次完成
．提供Meter模式, 可精確測量
．內建8mA DC Bias Option
．最高可達80個測試點數
．直覺式人性化操作介面
．RS-232, GPIB介面與電腦連線
系统规格
|
| ||||||
|
Model |
5235 |
5236 |
5237 | |||
|
Frequency |
200K |
500K |
1M | |||
|
Test Parameter |
| |||||
|
Transformer Scanning |
Turn Ratio, Phase, L, Q, Leakage L, Balance, | |||||
|
Test Signals Information |
| |||||
|
Test Frequency (0.01%, 5digits) |
Turn |
1kHz～200kHz |
1kHz～500kHz |
1kHz～1MHz | ||
|
Others |
20Hz～200kHz |
20Hz～500kHz |
20Hz～1MHz | |||
|
Output Impedance |
100Ω | |||||
|
Measurement Range |
| |||||
|
L, LK |
0.00001uH～9999.99H | |||||
|
C |
1pF～999.99mF | |||||
|
Q, D |
0.00001～99999 | |||||
|
Z, X, R |
0.00001Ω～99.9999MΩ | |||||
|
Y |
0.01nS～99.9999S | |||||
|
θ |
-90.00º～+90.00º | |||||
|
DCR |
0.01mΩ～99.999MΩ | |||||
|
Turn |
0.01～99999.99turns | |||||
|
Pin-Short |
12 pairs, between pin to pin | |||||
|
Basic Accuracy |
| |||||
|
L, LK, C, Z, X, Y, R, DCR |
0.1% (1kHz if AC parameter) | |||||
|
Q, D |
0.0005 (1kHz) | |||||
|
θ |
0.03º (1kHz) | |||||
|
Turn |
0.5% (1kHz) | |||||
|
Measurement Speed (Fastest) |
| |||||
|
L, LK, C, Z, X, Y, R, DCR |
75ms | |||||
|
DCR |
30m/s | |||||
|
Turn |
75ms | |||||
|
Judge |
| |||||
|
Transformer Scanning |
PASS/FAIL judge of all test parameters | |||||
|
Test Channel |
80 Channels | |||||
|
Trigger |
Internal, Manual, External | |||||
|
Display |
320*240 dot-matrix LCD display | |||||
|
Equivalent Circuit Mode |
Series, Parallel | |||||
|
Correction Function |
Open/Short Zeroing, Load deviatiom | |||||
|
Memory |
60 instrument setups | |||||
|
General | ||||||
